Short Wave Listeners Delight
Military, government, and civilian Shortwave / HF radio network frequencies

Civil Aviation Flightwatch Pacific HF Frequencies

| Civil Aviation Country Index | International Volmet Frequencies | HFDL |


Civil Aviation HF FLIGHTWATCH frequencies for Oceania:
AUS, NZ, South Pacific and South East Asia Regions



| ANTARCTICA | AUSTRALIA | NEW ZEALAND | PACIFIC ISLANDS | SOUTH ASIA |

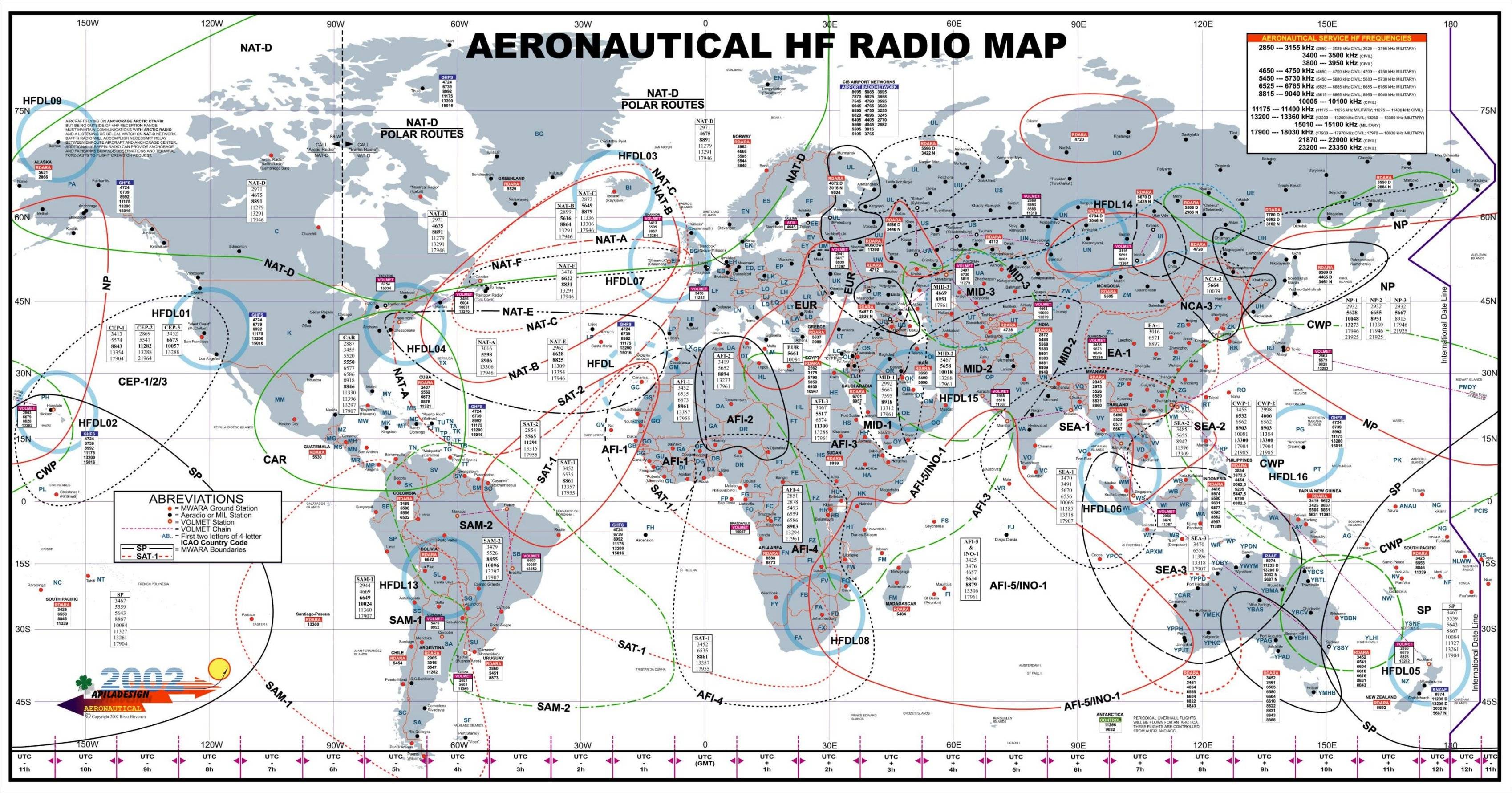

| WORLD HF MAP |

Active HF Frequencies by COUNTRY

| ANTARCTICA | AUSTRALIA | COOK ISLANDS | EAST TIMOR | FIJI | FRENCH POLYNESIA | INDONESIA | MALAYSIA |
| NAURU | NEW CALEDONIA | NEW ZEALAND | NIUE | P.N.G | SAMOA | SINGAPORE | SOLOMON ISLANDS |
| TONGA | TUVALU | UNITED STATES | VANUATU |

List of all ITU Allocated HF Frequencies

| MWARA SEA1 SEA2 SEA3 INO1 SP6  | RDARA 14 | RDARA 9 | RDARA 6 |

 These ITU allocation lists contain all possible frequencies for each global region.
Most regions will not utilize all frequencies listed.
You are encouraged to use the country or region links above to obtain working frequencies.



About HF air traffic control:
For the purposes of air traffic control there are two area-defined types of HF network:
- Major Air Route Areas (MWARA)
- Regional and Domestic Air Route Areas (RDARA)

MWARA's are based over a large geographic area and often share control among several of the countries in it's footprint - although generally not all of them.
RDARA's sub-divide MWARA's and there can be several RDARA's to a large country, or one RDARA encompassing several smaller countries.

The ITU regulates frequencies, and areas/regions for HF aviation communications (most areas do not use the full allocation of frequencies).

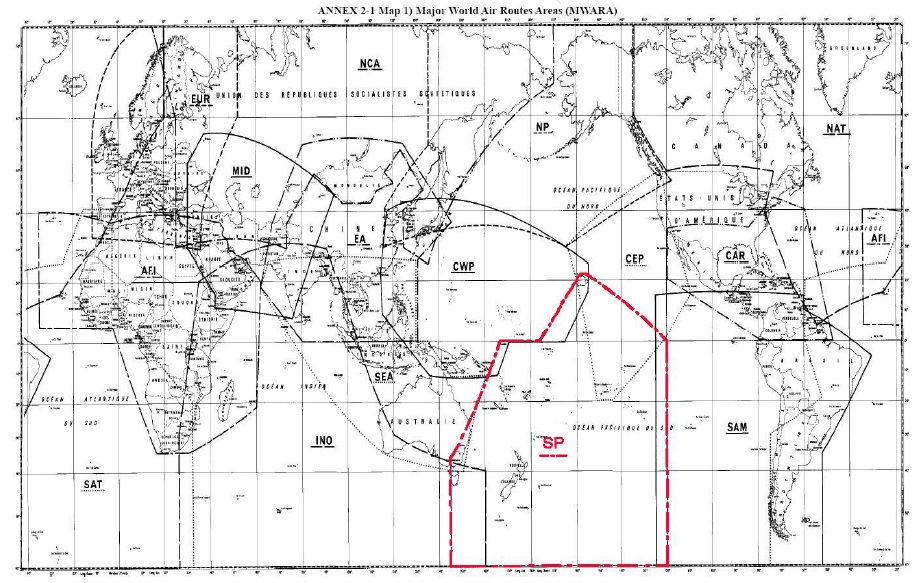

Pacific MWARA



MWARA Australia / New Zealand / South Pacific / Asia :

SP – 6 SOUTH PACIFIC

3467  5643  8867  8870* (San Fran Only)  13261  17904

Auckland, Brisbane, Nadi, Pascua (Easter Island), Port Vila, Rarotonga, San Francisco*, Tahiti, Wallis

INO – 1 INDIAN OCEAN

3476 5634 8879 13306 17961

Antananarivo, Beira, Bombay, Brisbane, Cocos Islands, Colombo, Dar es Salaam, Harare, Jeddah, Kigali, Lilongwe, Lusaka, Madras, Mahajanga, Male, Mauritius, Moroni, Nairobi, Perth, Seychelles, St.Denis, Toamasina

SEA – 1 SOUTH EAST ASIA

3470 5670 6556 10066 13318 17907

Bali, Bangkok, Colombo, Calcutta, Dhaka, Guangzhou, Jakarta, Kathmandu, Kuala Lumpur, Kunming, Madras, Male, Singapore, Yangon

SEA – 2 SOUTH EAST ASIA

3485 5649 5655 8942 11396 13309 17907

Bali, Bangkok, Guangzhou, Hanoi, Ho Chi Minh, Hong Kong, Jakarta, Kuala Lumpur, Kota Kinabalu, Manila, Seoul, Singapore, Tokyo, Vientianne

SEA – 3 SOUTH EAST ASIA

3470 5733 6556 10066 11396 13318 17907

Bali, Brisbane, Jakarta, Male, Singapore, Ujung Pandang



 AUSTRALIAN REGIONAL DOMESTIC AIR ROUTE AREAS (RDARA 14)



14A: SOUTHERN





3461



6565



8822



14B: NORTH WEST





3452



6610



8831



14C: NORTH EAST





3452



6541



8843


Australian RDARA 14 map



FREQUENCIES FOR RADARA  9 -  9B, 9C & 9D

9     4696 5583 6553 (Rarotonga - Cook Sector)
(Niue)		 8846 (Rarotonga - Cook Sector) (Niue)
8852		 10018 11339 (Rarotonga - Cook Sector)
9B 2860
2905
2929*		 3401*
3419
3425 (Rarotonga - Cook Sector)
3476*		 4660 5484
5508
5523
5565		 6538
6547
6598
6622		 8819
8837
8861
8906		 10009
10024
10039		 11393
9C 2851 3404
3461		 4675 5481 6580 8873 10042 11279
11312
9D 3016 3404   5592 6535 8873   11312

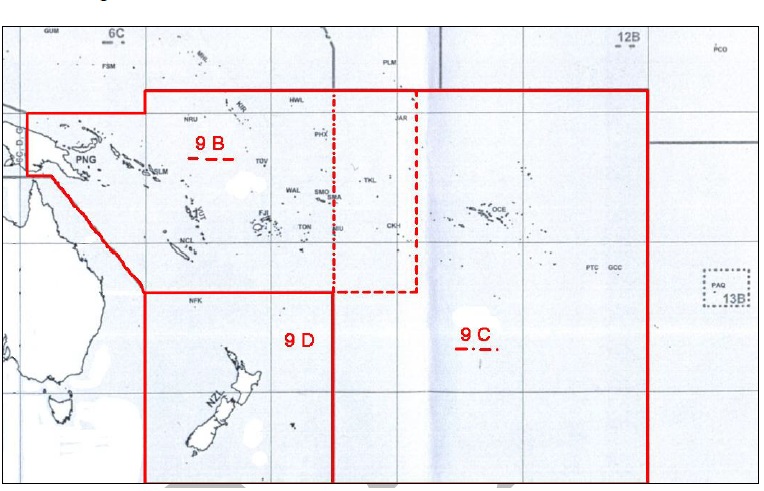

RDARA 9 map

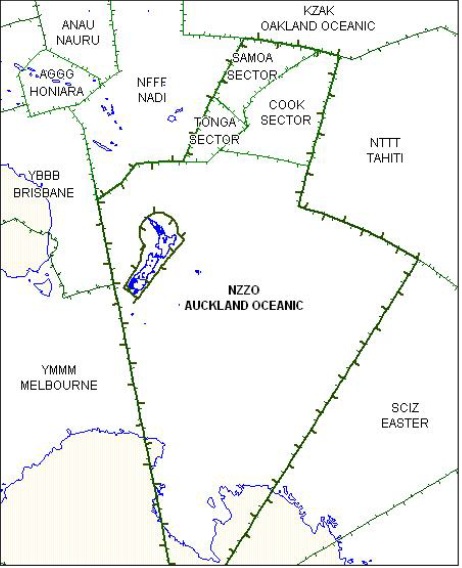

New Zealand FIC map

RDARA 9 map



FREQUENCIES FOR RDARA 6, 6A - 6G

6

8 840



11 381

13 291

17 943
6A

2 872

2 923

2 947

3 001

3 479

4 657*

4 675

5 484

5 580

5 601

6 607

6 613

6 658

8 891

8 906

8 948

10 006

10 051

10 081*

11 321

11 357
6B

2 857

2 920

3 479

3 488



5 502

5 595

5 625

6 607

6 613

6 619

8 864

8 885

10 021

10 093

11 339

11 366



17 955
6C

2 881

2 956

3 473

4 651

5 550

5 580

6 544

6 631

8 834

8 918

10 015



6D

2 866

2 884

3 416



5 490

5 520

5 568

5 574

5 631

6 550

6 568

6 577

6 595

8 882

8 957



11 309

11 372
6E

2 854

2 872

2 917

3 001

3 443

4 657*

4 675

5 514

5 526

5 550

6 583

6 655

6 661

8 861*

8 906

8 909

10 036

10 051

10 084

11 357

11 363
6F

2 926

2 941

3 434

3 440



5 496

5 508

6 526

6 667

8 864

8 939

10 060

11 279

11 366
6G

2 869*

2 875*

2 890

2 896*

2 899

2 902*

2 911*

2 917*

2 938

2 953

2 962

2 968*

2 971

2 977

2 983

2 989

2 995

3 413*

3 422*

3 431*

3 437

3 446

3 449*

3 464

3 482

4 651*

4 663*

4 669*

4 672*

4 690*

4 696*

5 481

5 487

5 493*

5 499*

5 505*

5 511*

5 517*

5 523

5 547

5 553

5 559

5 565

5 571

5 577

5 583

5 592

5 598

5 604

5 610

5 616

5 622

5 628*

5 634*

5 640*

6 529

6 535

6 541

6 547

6 553

6 559

6 565

6 574

6 580

6 586

6 598

6 604

6 610

6 616

6 622

6 628

6 634

6 649

6 652

6 673

6 682



8 816

8 825

8 831

8 843

8 858

8 867

8 870*

8 873

8 888*

8 912*

8 960

10 018*

10 054*

10 063*

11 276*

11 282*

11 288

11 294*

11 300*

11 306

11 315

11 369

13 270

13 276

17 913

Asian FIR's

Information provided by AIP Australia, AIP New Zealand, AIP Malaysia, AIP Indonesia, AIP Vanuatu, AIP East Timor, ISPACG, ITU and is correct as of 5 March 2013
